LED Tunnel Illuminated Evacuation Guidance Sign | IP65 Electro-Optical Tunnel Indicator Sign
Product Description of Tunnel Delineators / Tunnel Guidance Markers

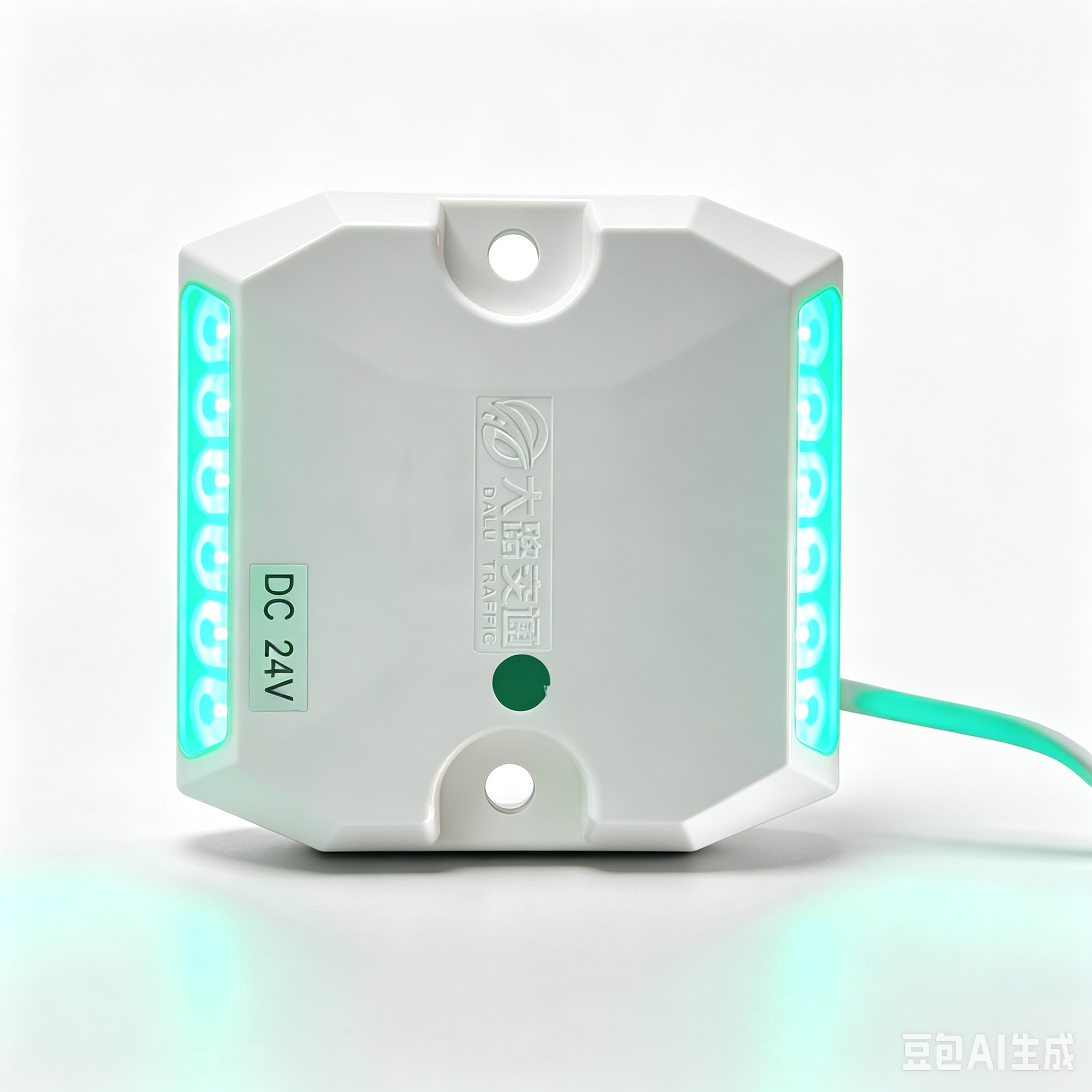

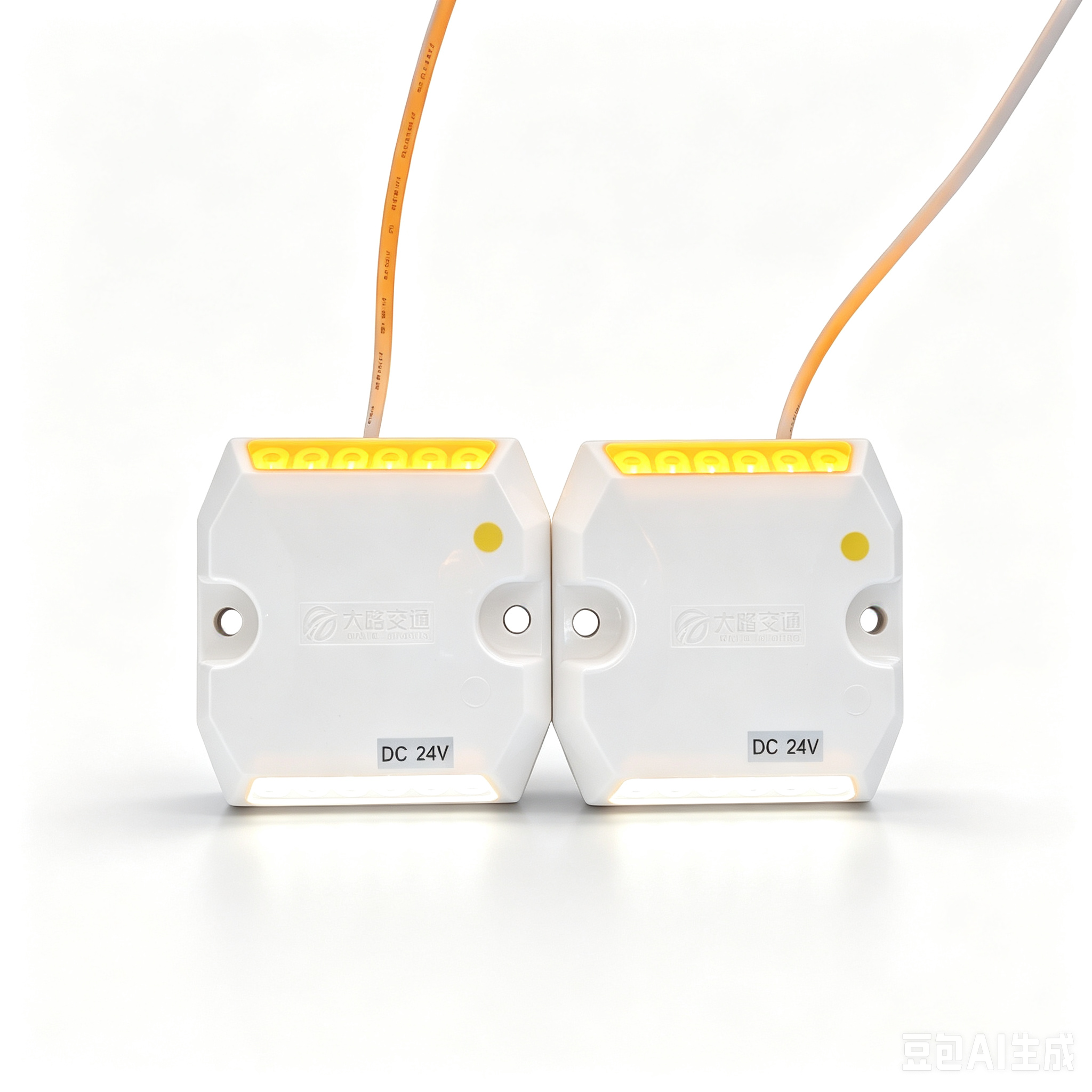

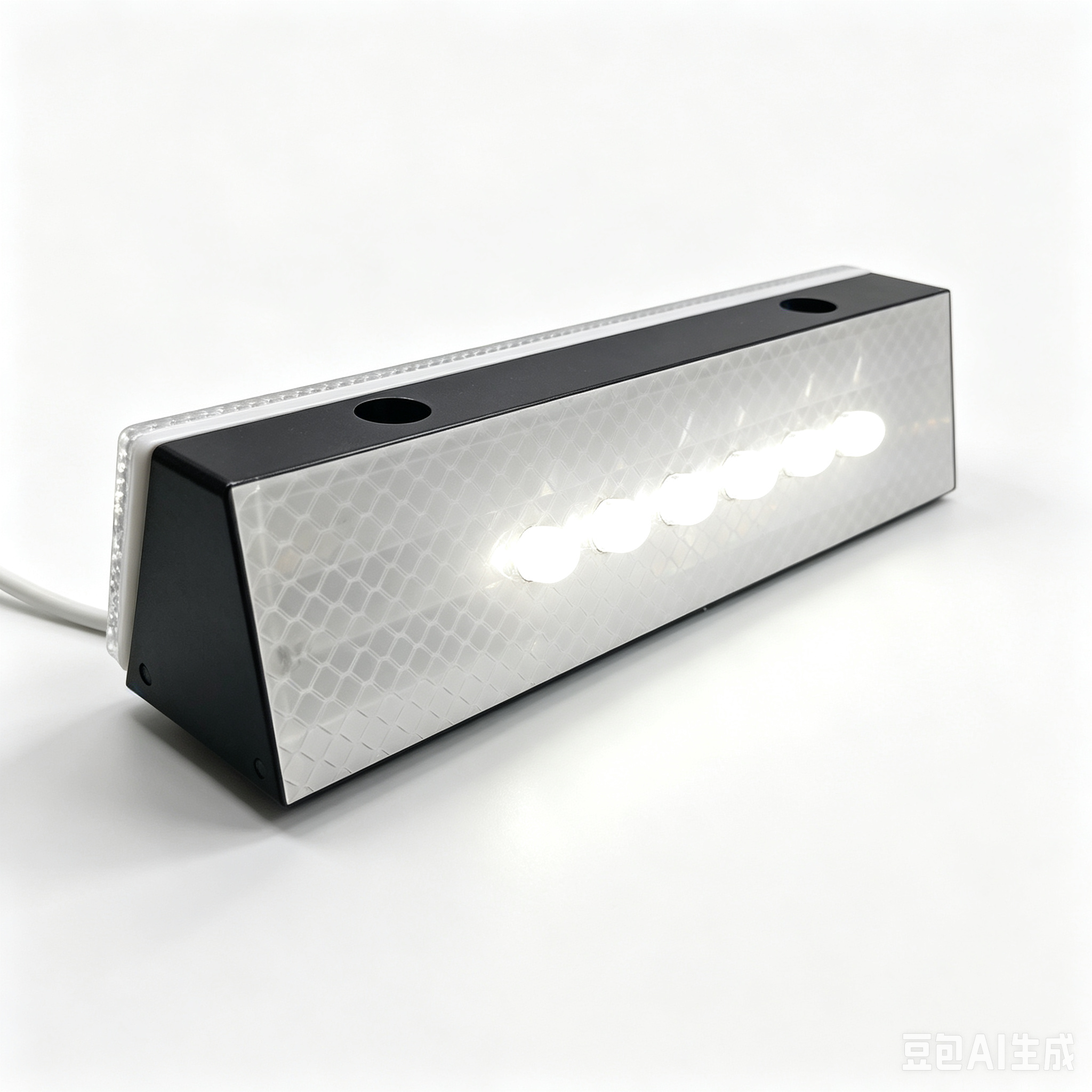

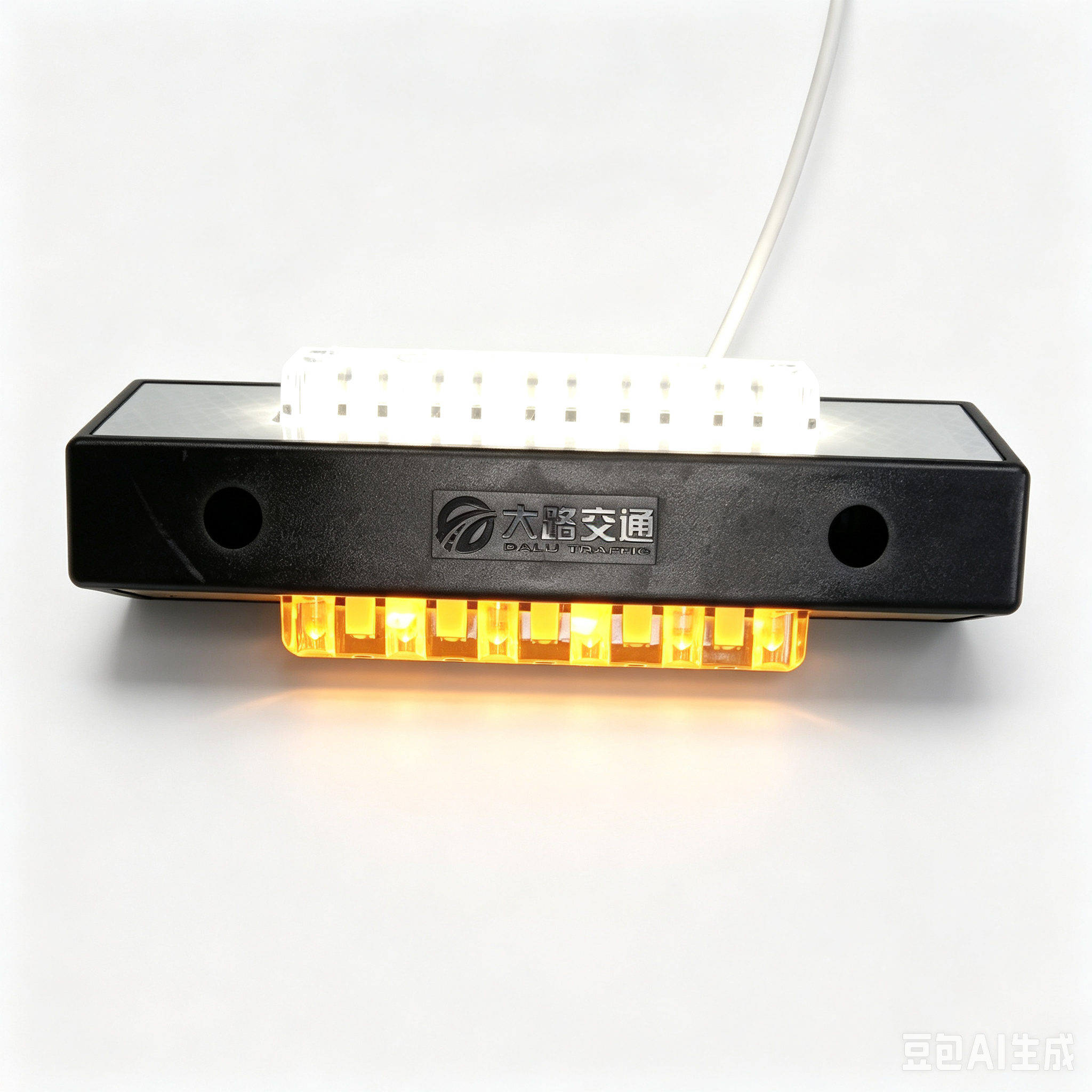

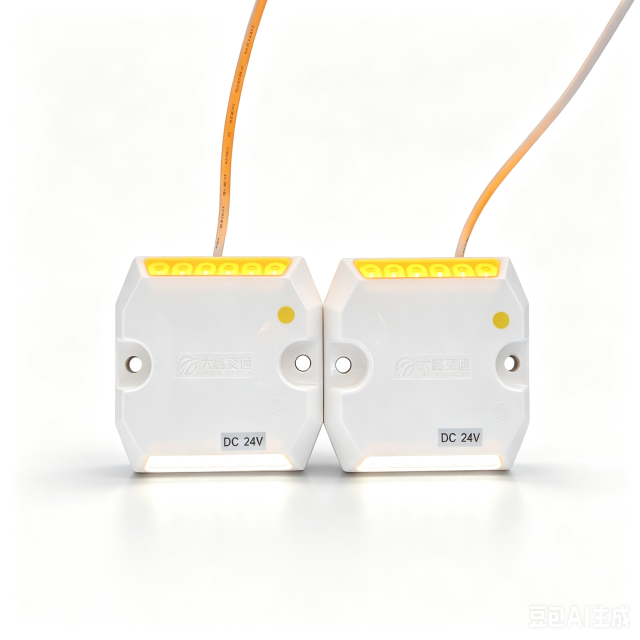

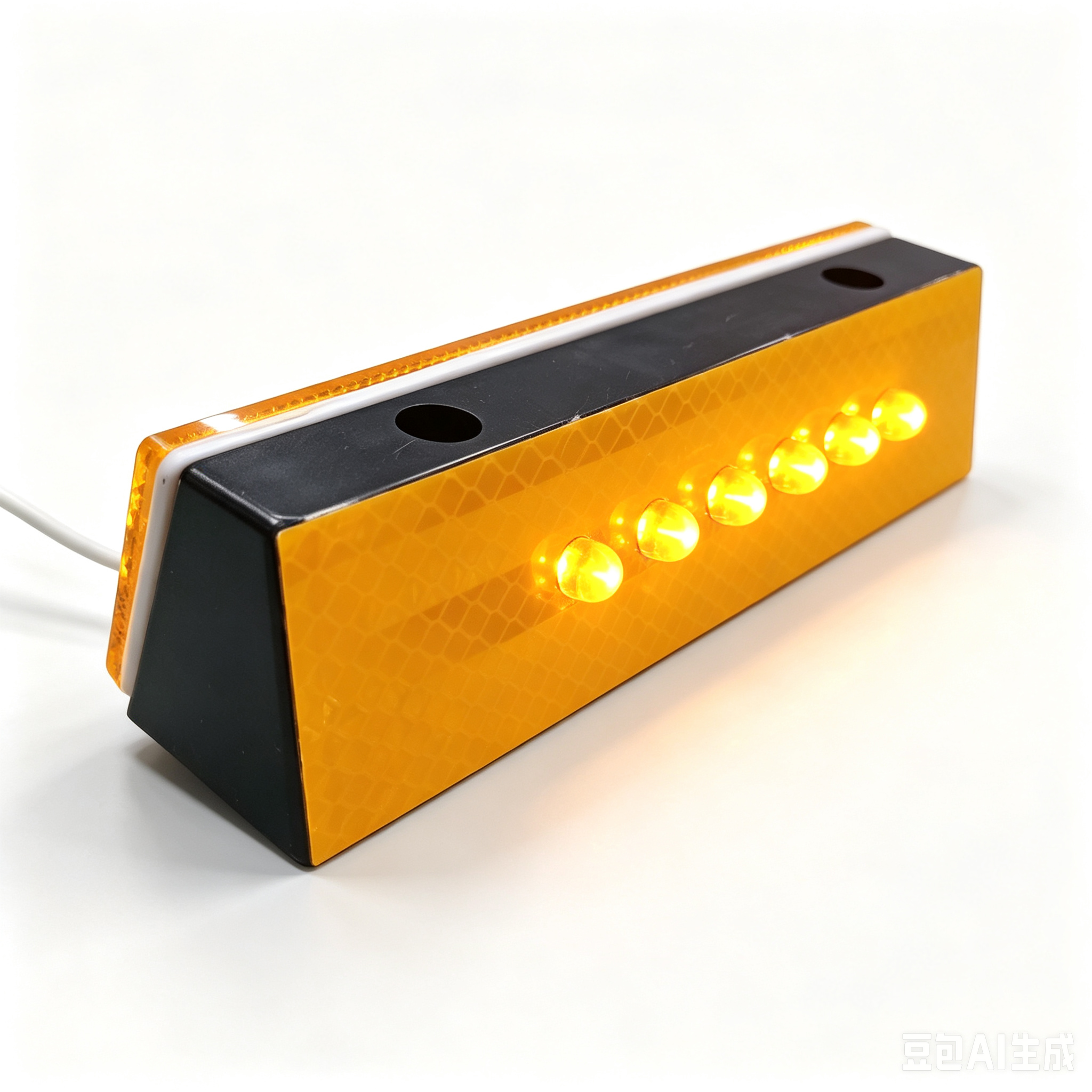

Tunnel Delineator (Active LED Guidance Marker) is a clear, eye-catching, adjustable active flashing visual guidance device. Continuous installation forms illuminated lane outline lines, delivering outstanding directional warning functions while creating beautiful luminous landscapes along road tunnels.
It is mainly mounted on curbs, tunnel sidewalls and edge walls of expressways, road tunnels, tunnel approach shoulders, traffic roundabouts, traffic islands, and entrances & exits of underground parking lots.
Product Features of Tunnel Delineators / Guidance Markers

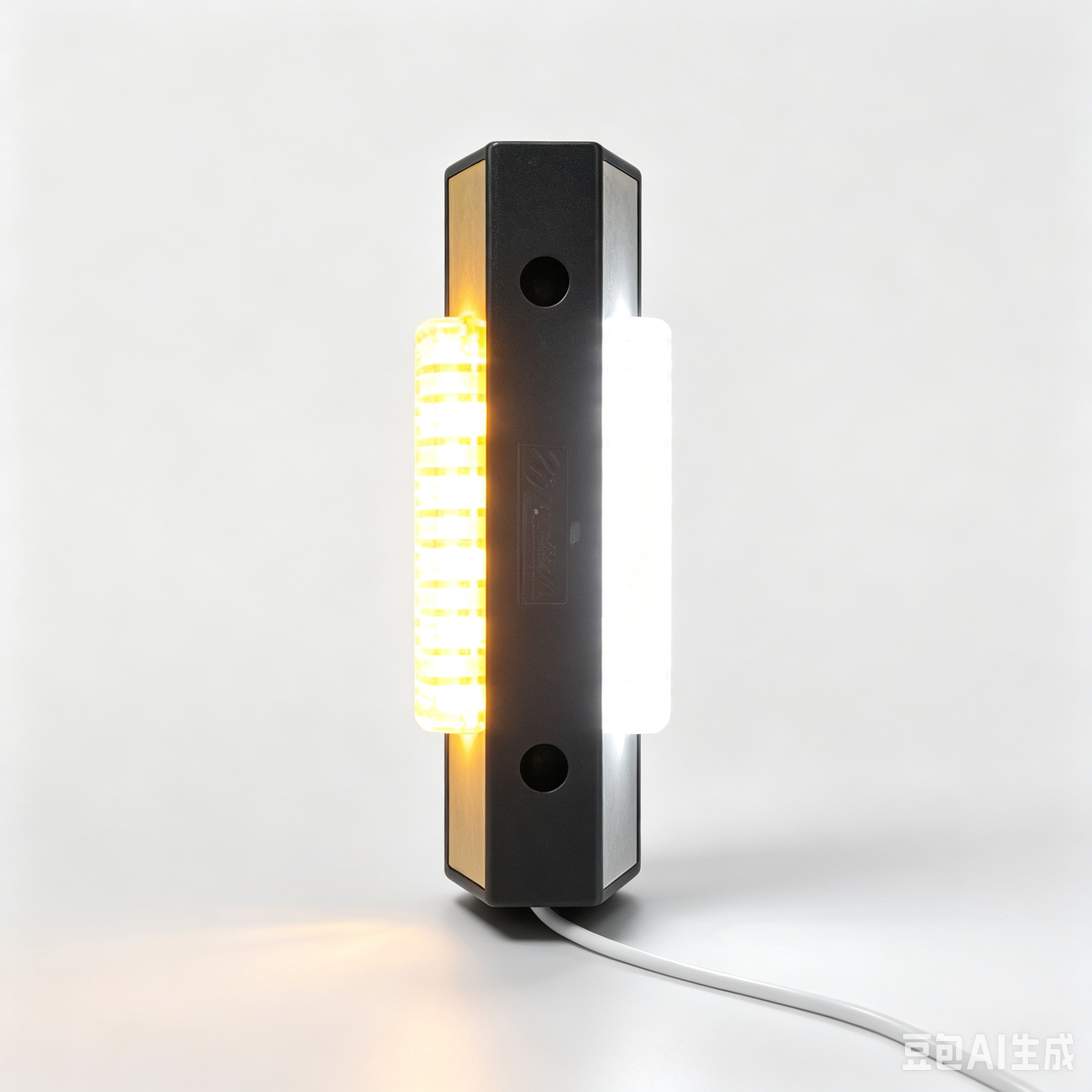

- Equipped with high-brightness LED light sources, double-sided light emission with even, soft light output, no glare and stable performance.
- Built-in constant-current & anti-interference driver chips to deliver more stable LED operation, longer service life and lower light attenuation.
- Built-in protection circuit to prevent single-unit failure from crashing the whole guidance system.
- Powerful warning effect with a visible distance of over 500 meters.
- Energy-saving & eco-friendly, low power consumption and long service lifespan.

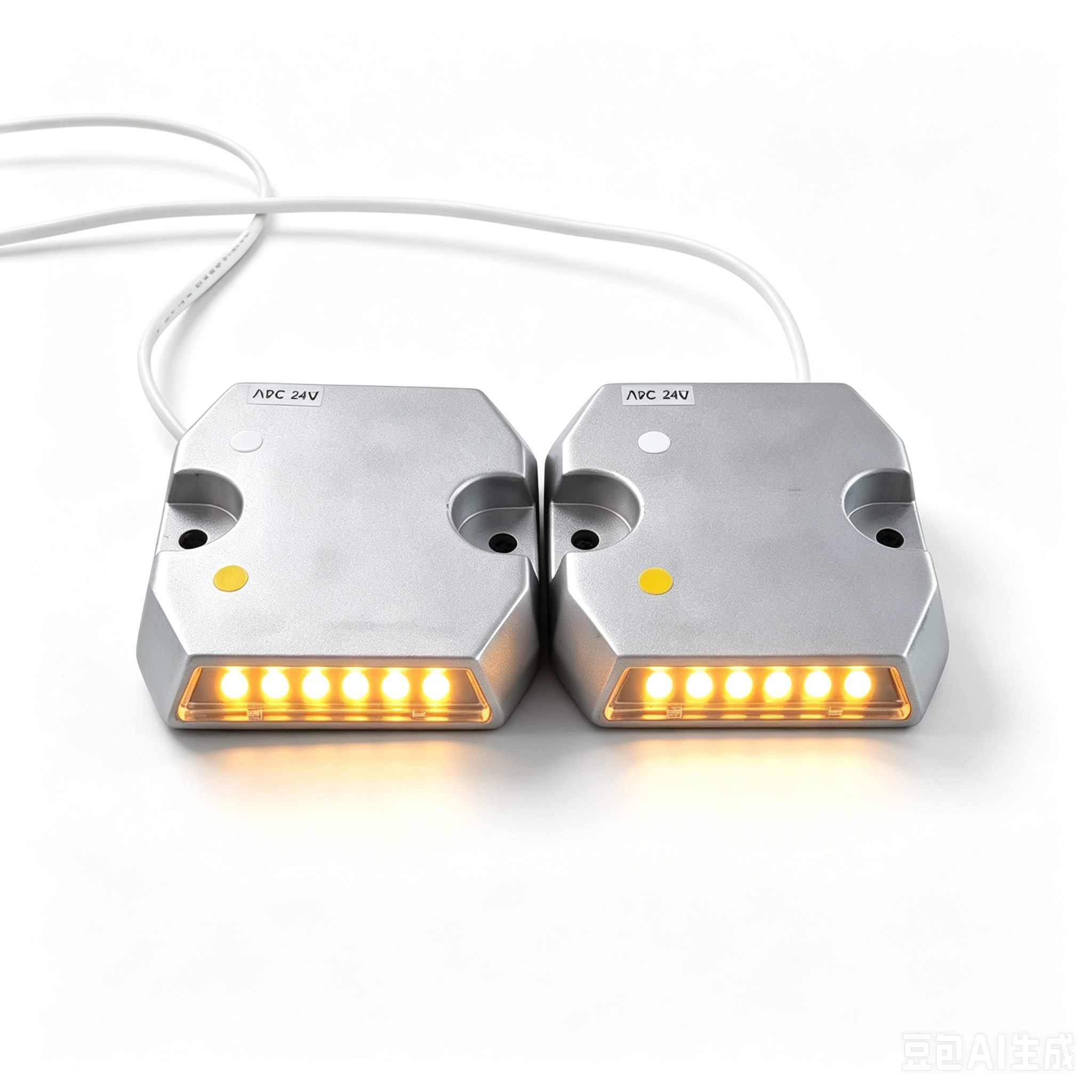

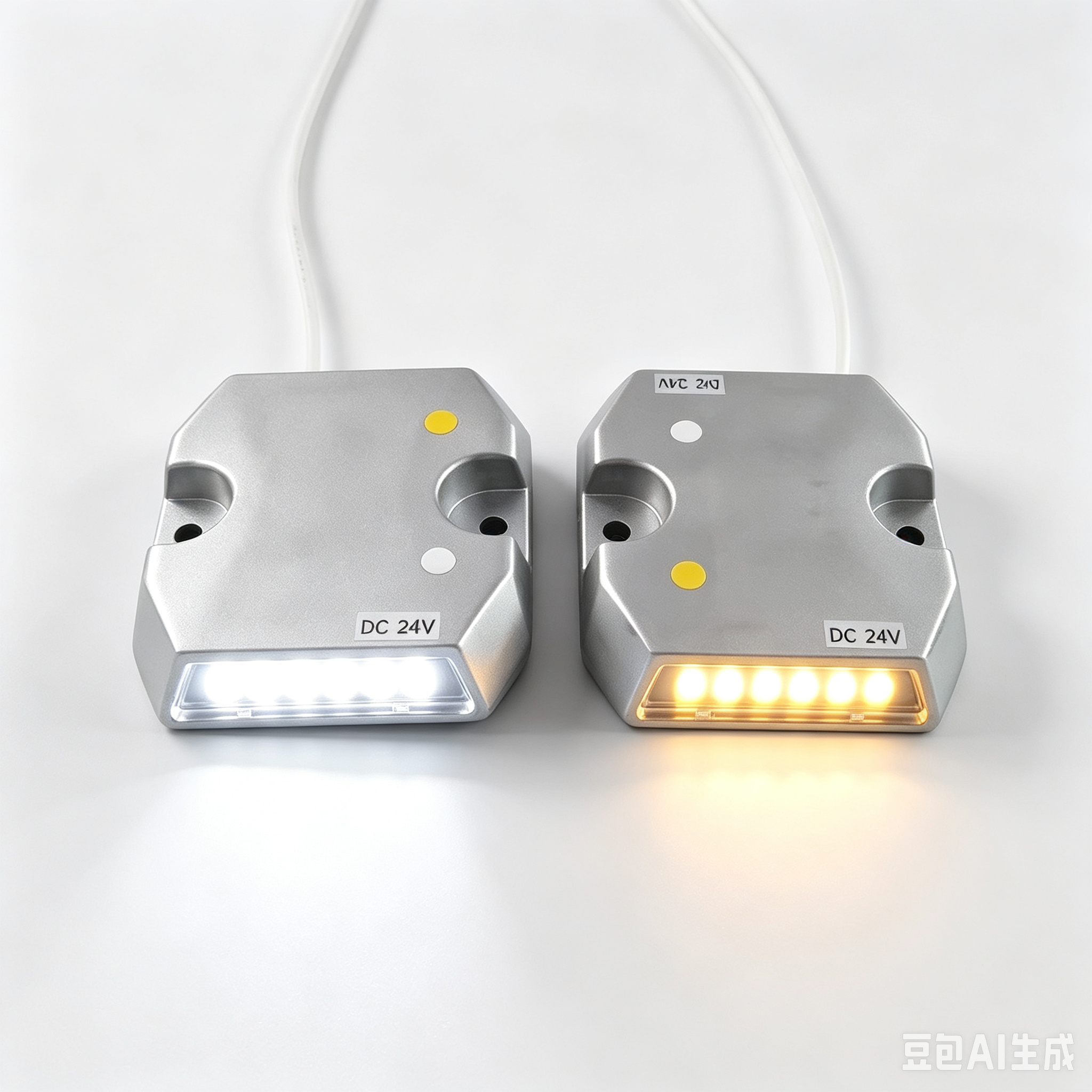

- Exquisite appearance: main housing adopts flame-retardant PC / ABS plastic or die-cast aluminum; light-transmitting cover made of transparent polycarbonate with superior light transmittance; sealing glue uses modified silicone resin.
- Simple installation, safe, practical and low failure rate.
- Compressive load capacity up to 200 KN.
Technical Parameters of Plastic LED Tunnel Delineators
- Dimensions: 10010020mm / 180*40mm, custom sizes available
- Product Weight: Customizable

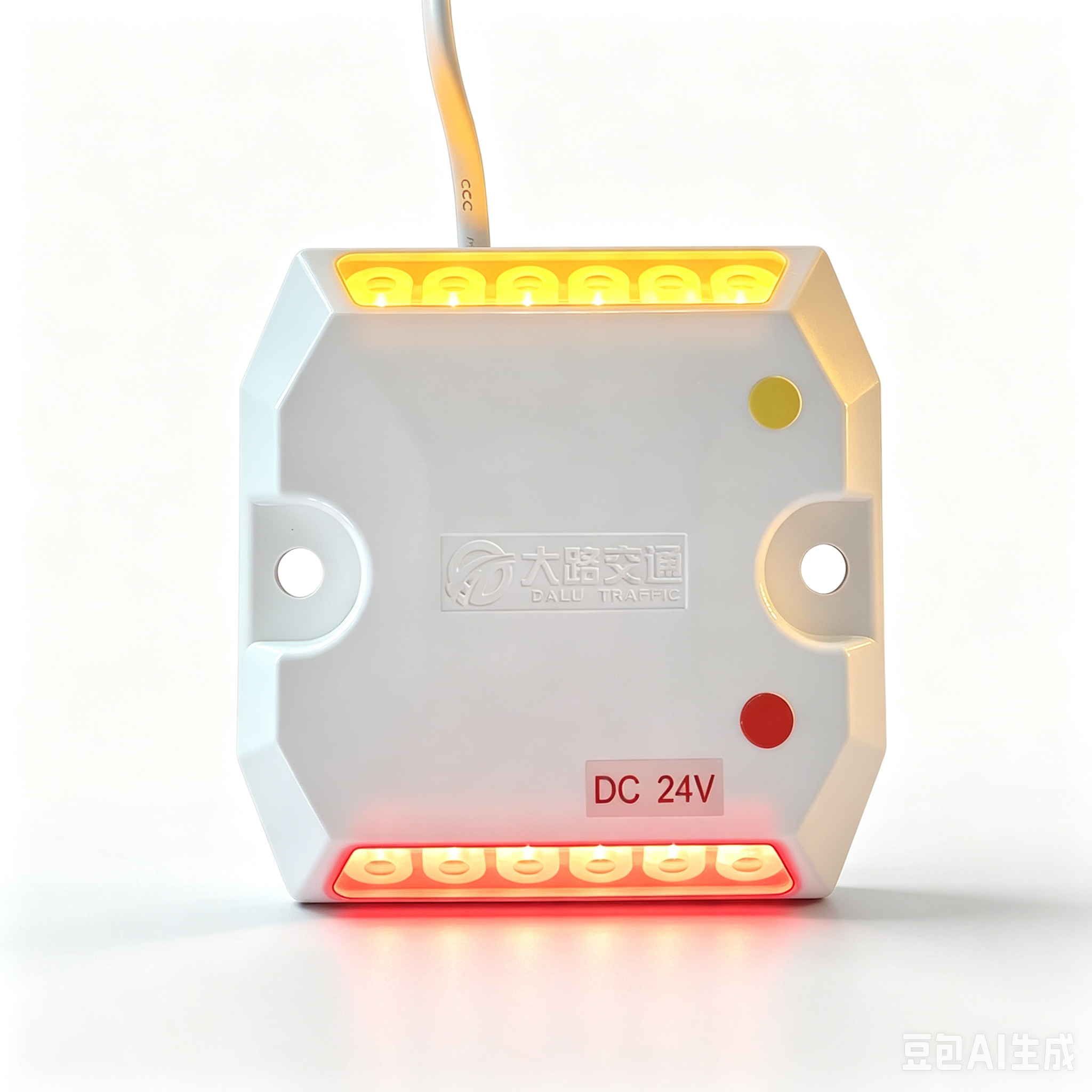

- Light-emitting Component: LED; 6 LEDs for single-sided light emission, 12 LEDs for double-sided light emission (customizable)
- Luminous Intensity: Single LED chip ≥10,000 mcd
- Flashing Frequency: 30 ~ 300 times per minute (adjustable)
- Working Mode: Synchronous flashing or steady-on
- Available Light Colors: Amber, Red, White, Green, Blue
- Ingress Protection Rating: IP68
- Operating Voltage: DC 24V/(customizable)
- Power Consumption: ≤0.9W for double-sided lighting; ≤0.45W for single-sided lighting (customizable)
- Ambient Operating Temperature: -35℃ ~ +60℃
- LED Chip Brand: Taiwan Epistar/(customizable)
We provide mold opening & customization service according to clients’ specific requirements.
