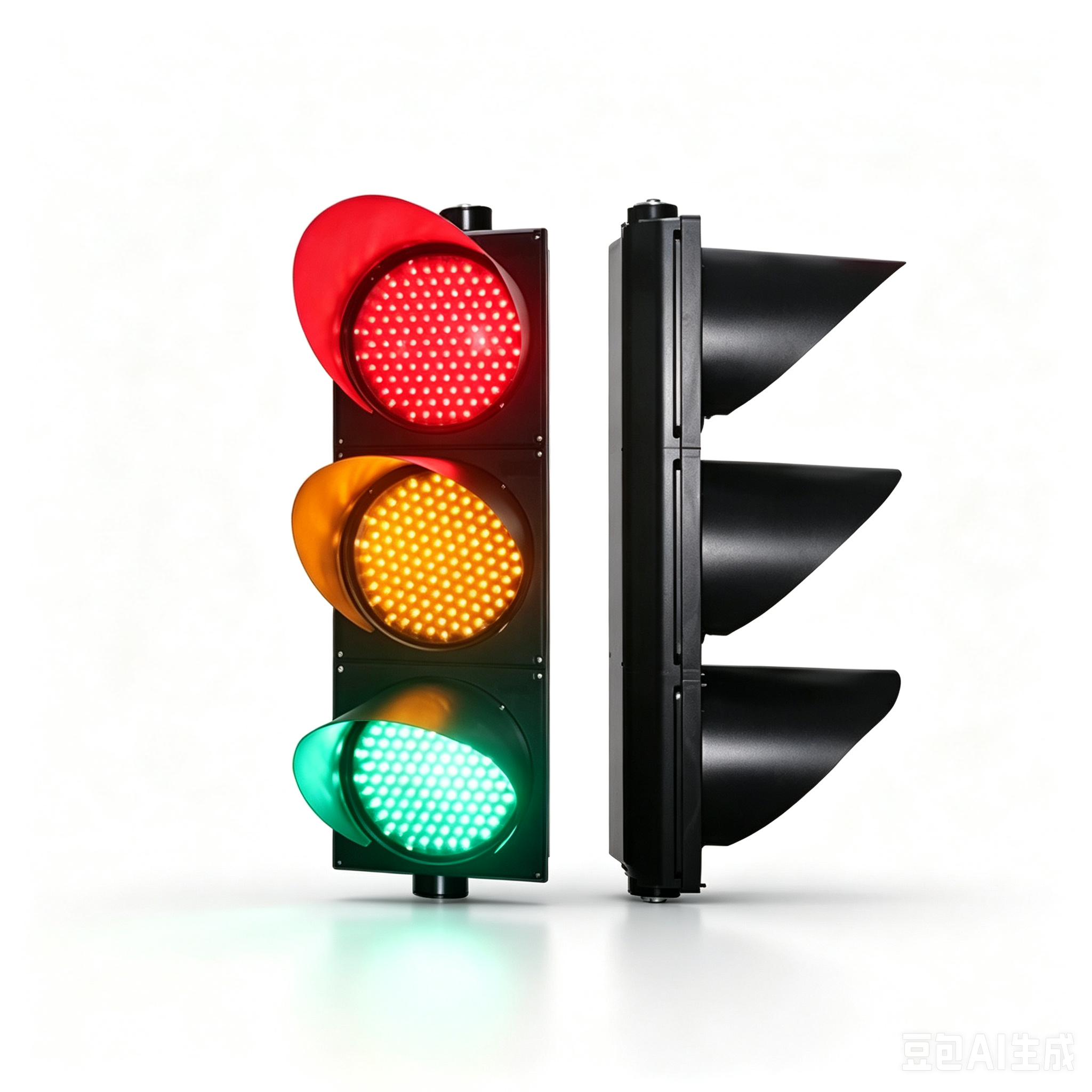

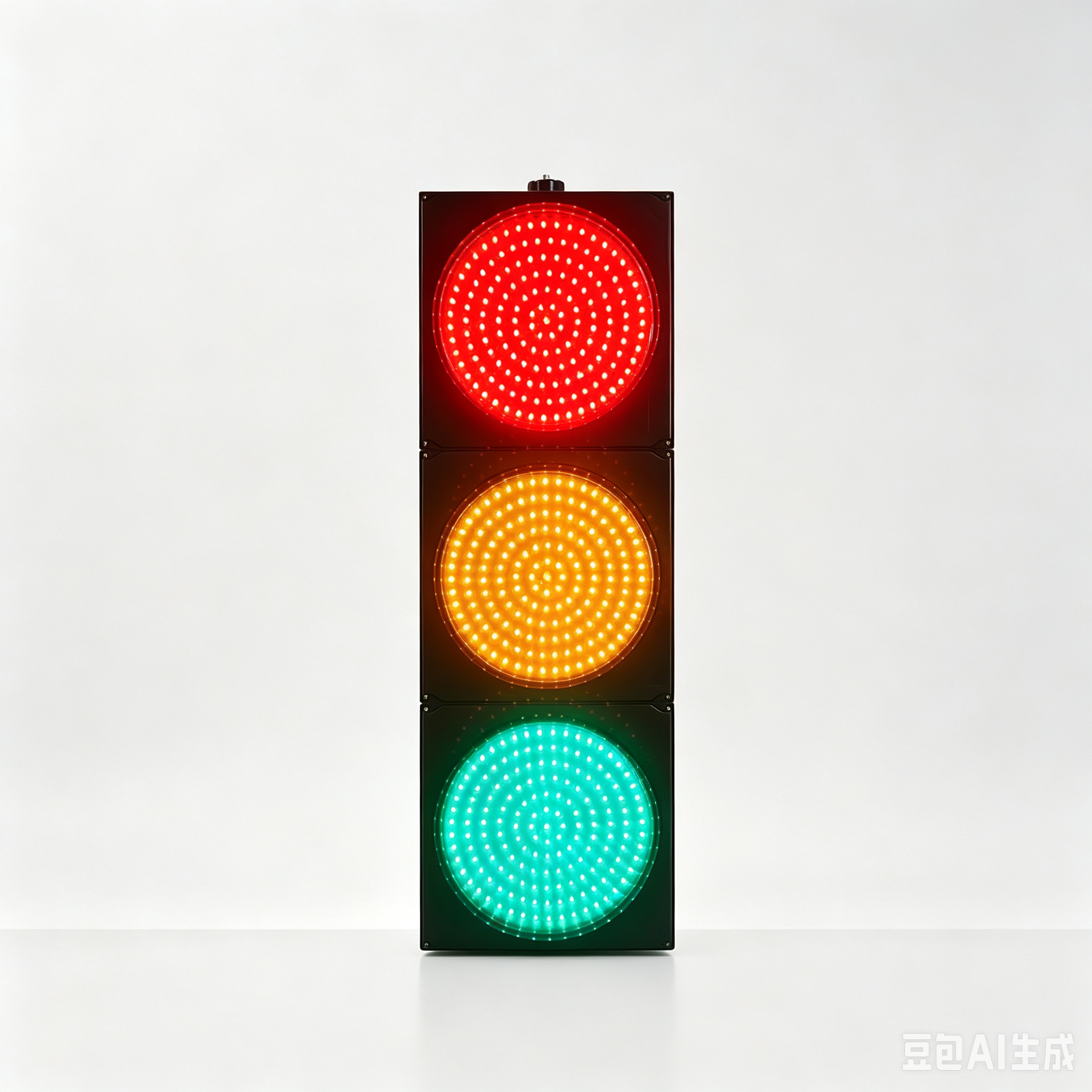

300mm RYG Led All-round Traffic signal Light
Description
Product Features
- Low power consumption
- Novel structure, aesthetically pleasing appearance
- Wide viewing angle
- Long lifespan
- Multiple seals, waterproof
- Unique optical system, uniform chromaticity
- Long visible distance
- Complies with GB/14887-2011 and relevant international standards
Technical Parameters
- Full red panel: 168 LEDs, Single LED brightness: 4000~5000 mcd, Wavelength: 630±5nm, Left/right/up/down viewing angle: 30°, Power: ≤15W.
- Full yellow panel: 168 LEDs, Single LED brightness: 4000~5000 mcd, Wavelength: 590±5nm, Left/right/up/down viewing angle: 30°, Power: ≤15W.
- Full green panel: 168 LEDs, Single LED brightness: 7000~10000 mcd, Wavelength: 505±5nm, Left/right/up/down viewing angle: 30°, Power: ≤15W.
- Ambient temperature: -40℃~+80℃
- Operating voltage: AC185V-265V 60HZ/50HZ
- Lamp housing material: PC (Polycarbonate)/die-cast aluminum
- Light group dimensions (mm): 1300*580*100
- IP rating: IP53
- Visible distance ≥500m
Wiring diagram

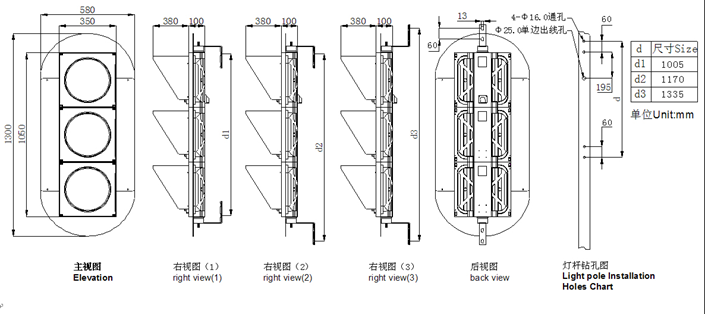

Installation dimension
Intersection effect drawing
Customization supported as per your demands & drawings. Contact us for details.
