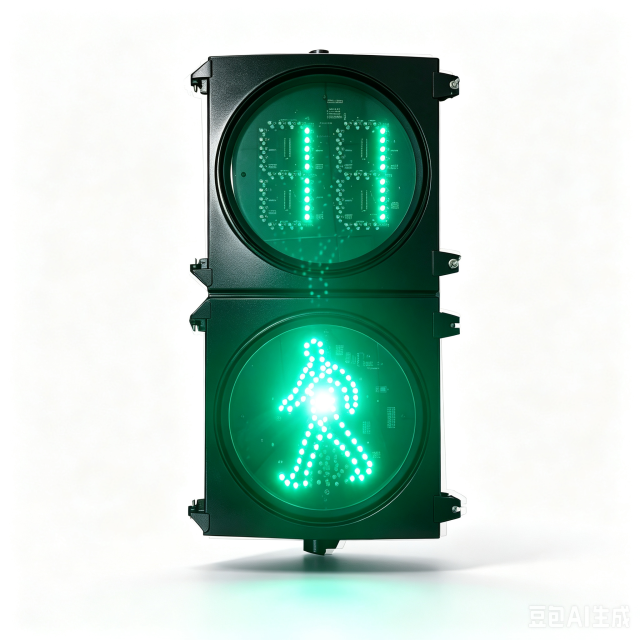

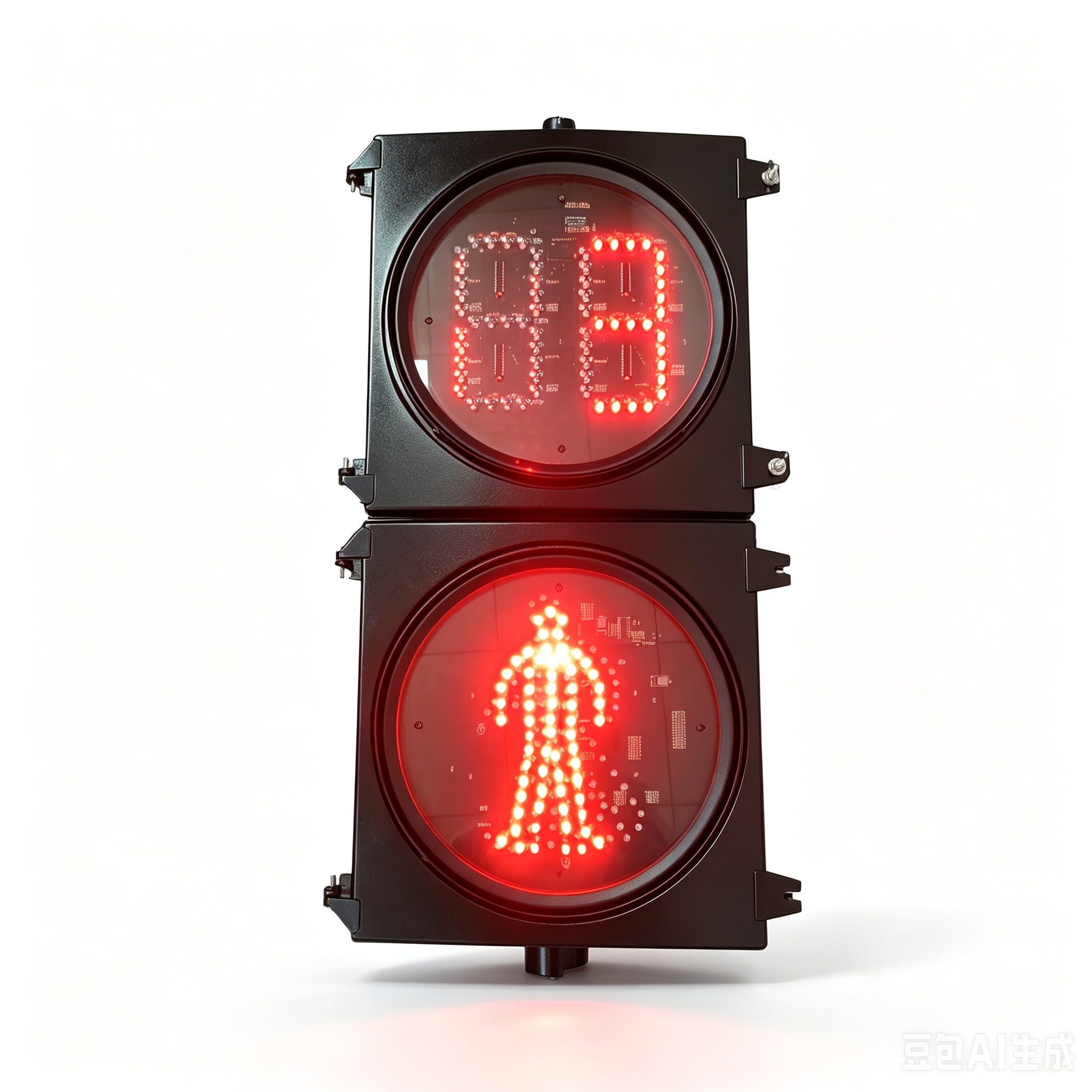

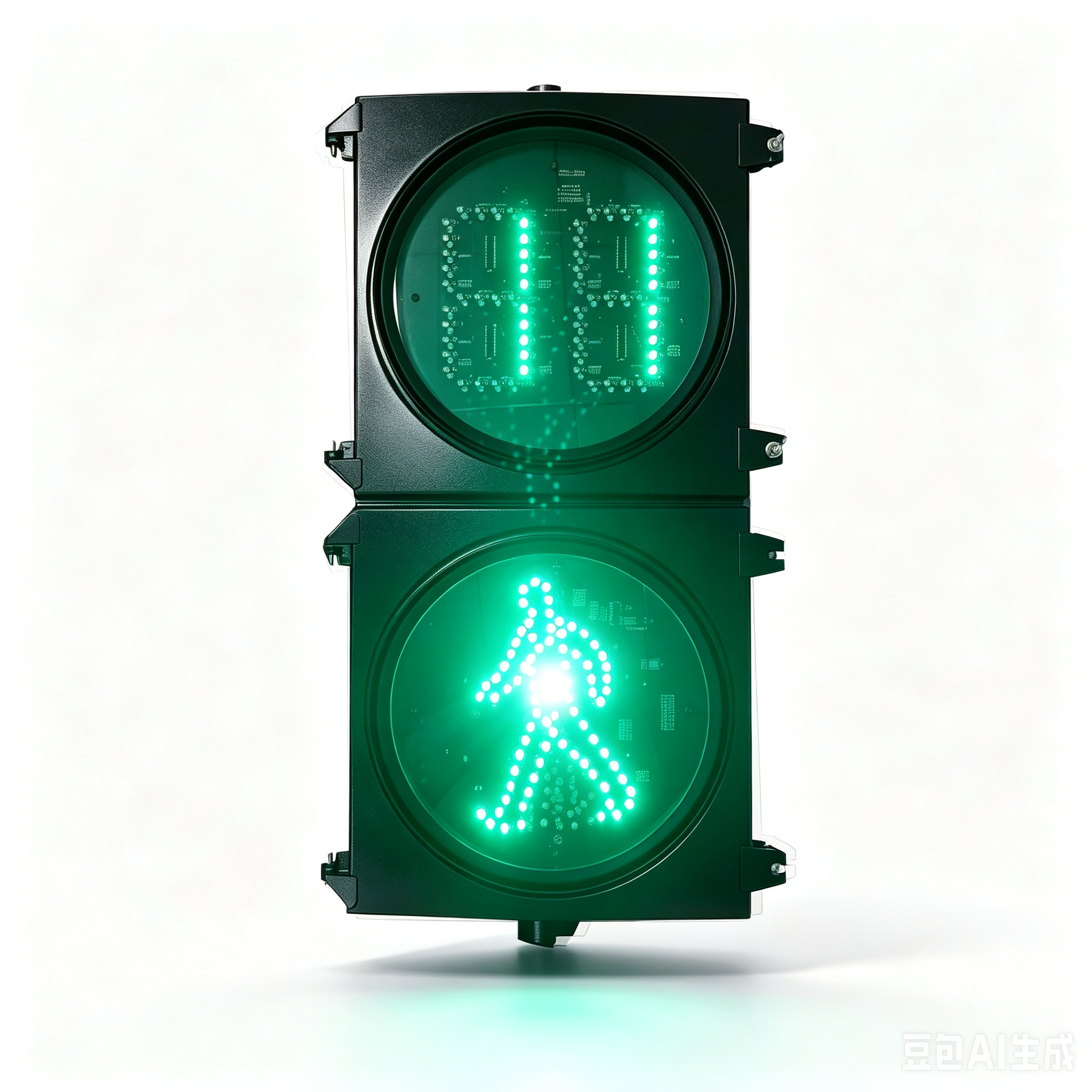

Pedestrian Traffic Light with Countdown Timer / LED Walking Signal Lamp
Description
Product Features
- Low power consumption
- Novel structure, aesthetically pleasing appearance
- Wide viewing angle
- Long lifespan
- Multiple seals, waterproof
- Unique optical system, uniform chromaticity
- Long visible distance
- Complies with GB/14887-2011 and relevant international standards
Technical Parameters
- Red Man: 80 LEDs, each LED brightness: 3000 - 5000, wavelength: 630 ± 5 nm, left-right and up-down viewing angle: 30°, power: ≤ 9W.
- Green Man: 129 LEDs, each LED brightness: 7000 - 10000, wavelength: 505 ± 5 nm, left-right and up-down viewing angle: 30°, power: ≤ 15W.
- Green Countdown: 64 LEDs, each LED brightness: 4000 - 5600, wavelength: 505 ± 5 nm, left-right and up-down viewing angle: 30°, power: ≤ 9W.
- Environmental temperature: -40℃ to +80℃
- Operating voltage: AC 185V - 265V 60Hz/50Hz
- Light box shell material: PC
- Light assembly size (mm): 700x350x140
- IP rating: IP53
- Visible distance ≥ 500m
Wiring diagram
Installation dimension
Intersection effect drawing
Customization supported as per your demands & drawings. Contact us for details.
