Description

Product Information

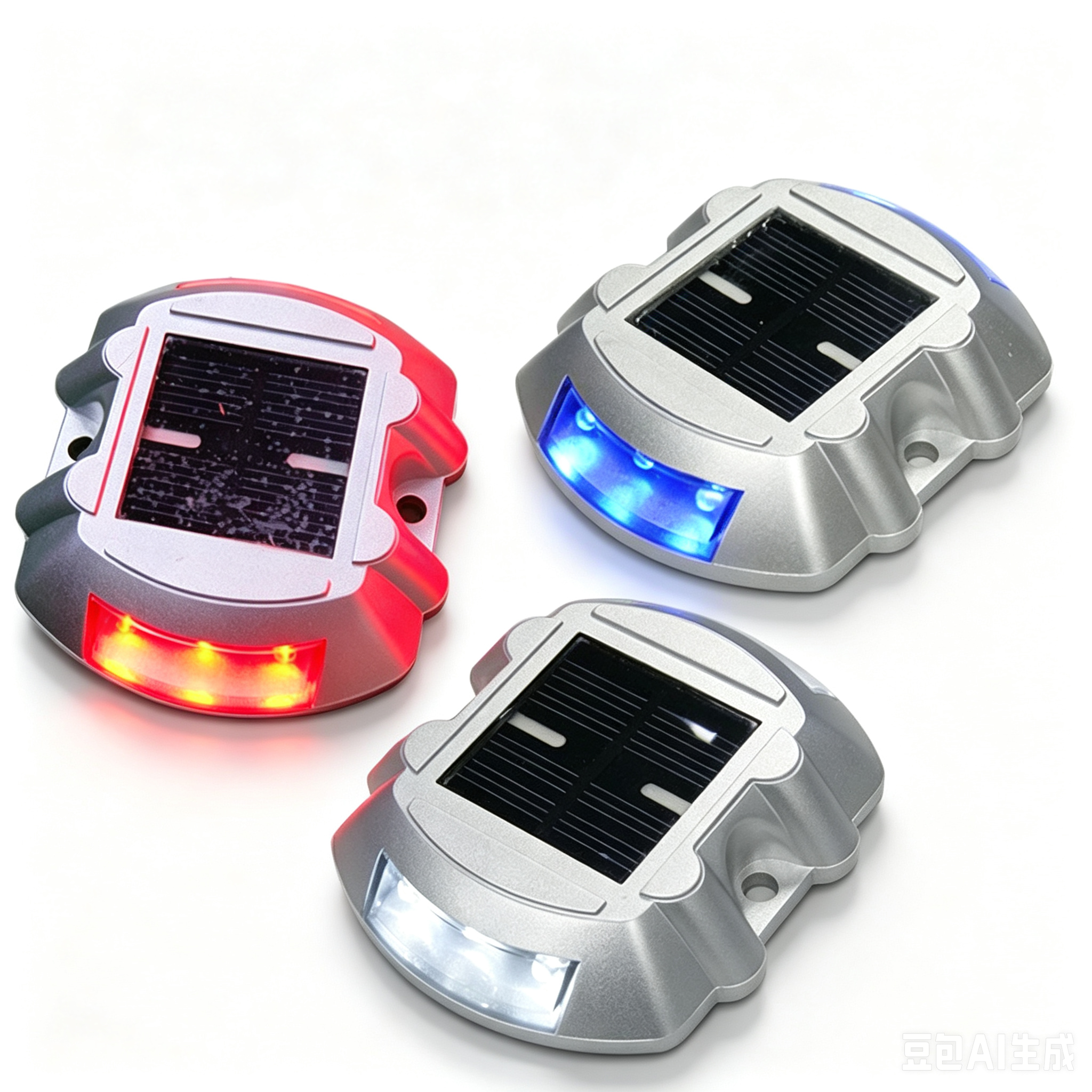

Product Name: Solar Cast Aluminum Horseshoe Road Stud

Product Dimensions: 110*97*24 mm

Net Weight: 280g

Available Colors: Yellow, White, Blue, Red, Green. Custom colors are available.

Product Features

1. This solar road stud adopts solar energy and LED light sources. It is energy-saving, eco-friendly and easy to install.

2. Equipped with an independent power supply system, the stud automatically turns on at night.

3. Supports steady-on and flashing lighting modes, providing excellent road warning and traffic guidance effects.

4. The solar panel adopts imported silicon wafers with stable performance and high photoelectric conversion efficiency.

5. The product features ultra-high reflective brightness. Ordinary reflective road studs only reach 300~400mcd, while this solar road stud achieves up to 2000mcd — 6 to 7 times brighter than ordinary reflective studs. The brightness of a single LED bead exceeds 6000mcd.

6. Active luminous and dynamic warning design: The stud flashes at night to provide strong dynamic traffic warning. Active lighting effectively avoids visual interference from rain and fog, and reduces drivers’ reliance on vehicle headlights, achieving longer visible distance and better warning performance.

Technical Specifications

1. Solar Panel: 2V/120mA Monocrystalline Silicon

2. Energy Storage Battery: 1.2V/600mAh High-temperature Ni-MH Battery / LiFePO4 Battery (Optional)

3. Working Duration: Under standard light intensity, it can work for 40 hours after one full day of solar charging; continuous working time exceeds 80 hours when fully charged.

4. Lighting Mode: Steady-on / Flashing optional

5. Light Colors: White, Yellow, Red, Green, Blue optional

6. Light Source: 12pcs 5mm Super-bright Anti-fog LEDs

7. Visible Distance: More than 800 meters

8. Activation Illuminance: 400–500 Lux

9. Service Life: 3–5 years (Ni-MH battery)

10. Operating Temperature: -20℃ ~ +70℃

11. Material: Die-cast aluminum housing + reflective sheet + imported PC lens, UV-resistant and anti-yellowing

12. Waterproof & Static Load Resistance: IP68 waterproof grade, static compression resistance over 15 tons

Customization supported as per your demands & drawings. Contact us for details.
