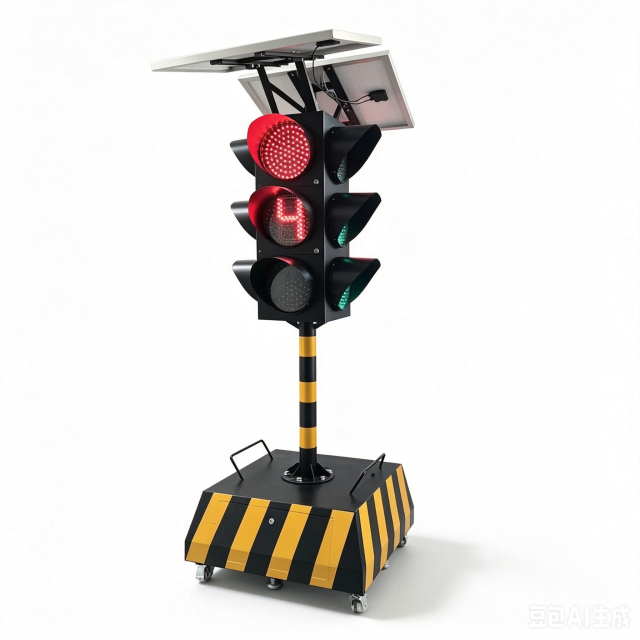

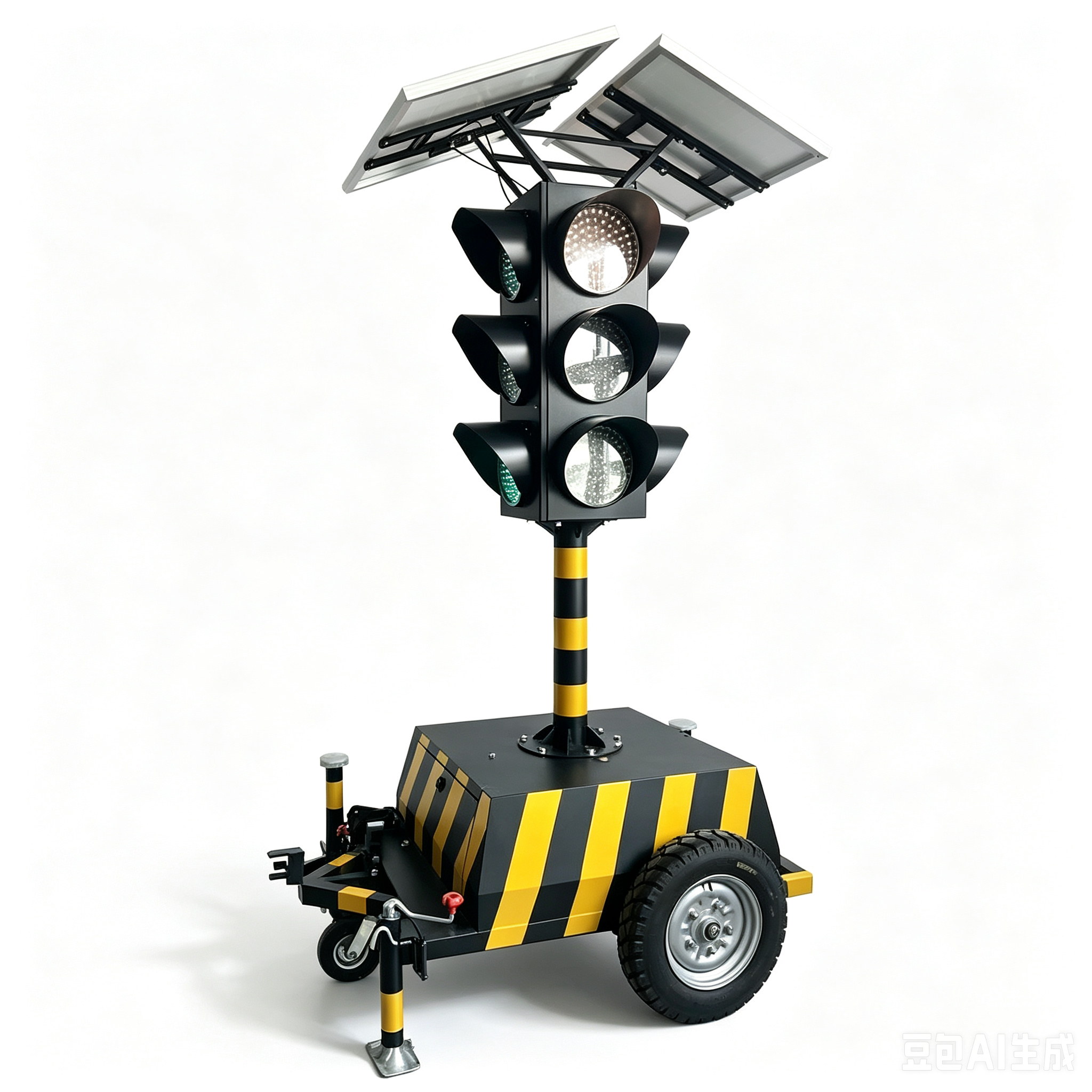

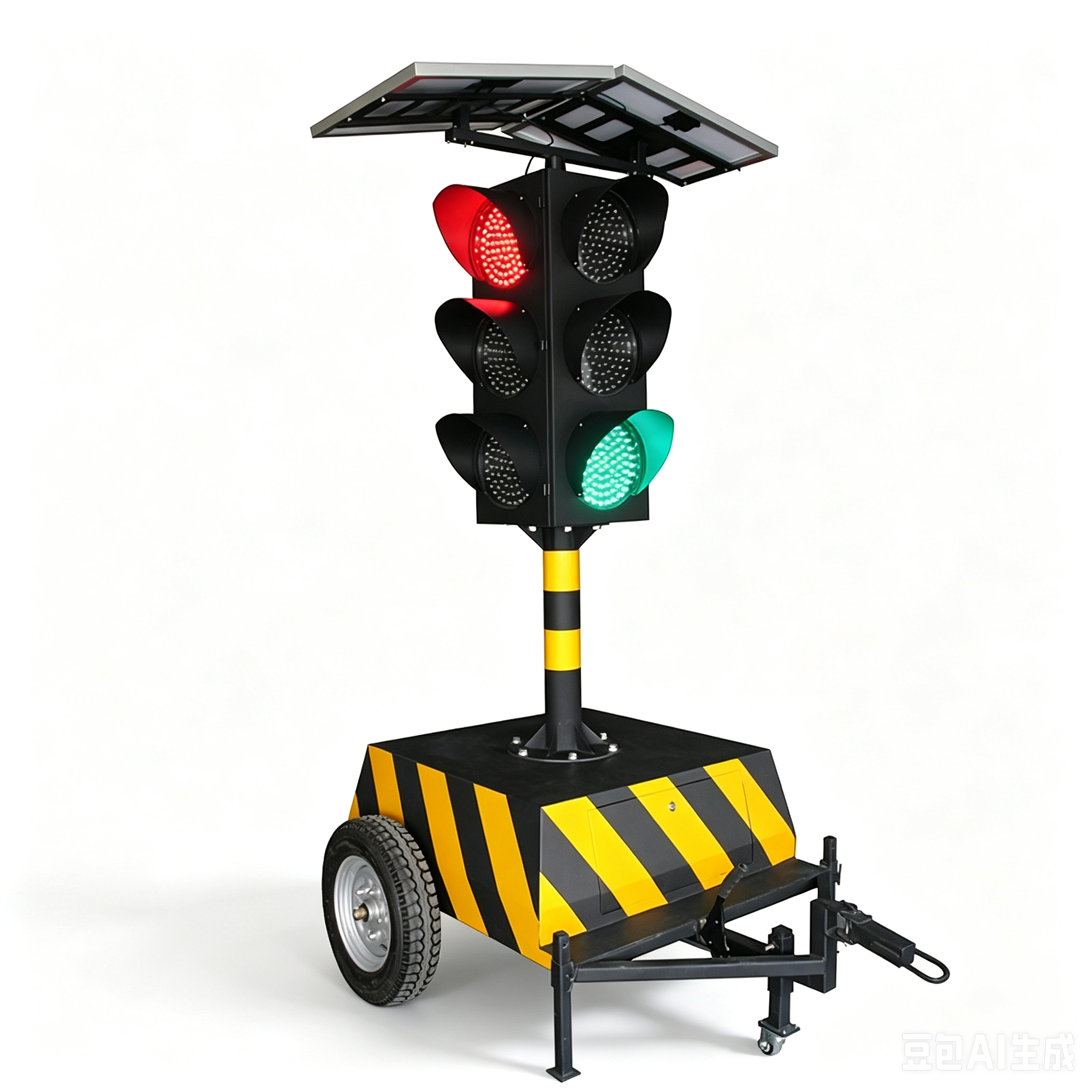

This system is specifically designed for temporary traffic control scenarios, serving as an ideal supplement to fixed traffic signals. Its core advantages are flexibility, no need for grid power, and plug-and-play deployment . It can be quickly installed at any intersection requiring temporary traffic management, effectively filling the "gap period" in traffic control.
Applicable Scenarios:
Intersections without formal traffic signals
School zones during peak hours
Construction zones or roadwork areas
Areas affected by power outages or signal failures
Temporary events or emergency traffic diversion
Key Features:
Mobile & Compact: Lightweight design with wheels or quick-mount base for easy relocation. Solar-Powered: Integrated solar panels provide clean, renewable energy; no external power source required. Long Battery Life: High-capacity battery ensures continuous operation even on cloudy days or at night. Highly Maneuverable: Can be deployed on-site in minutes, offering instant traffic control wherever needed.
Main Technical Specifications:
1.Battery parameters: 12V 150-200Ah 2.Maximum operating current: less than 900mA 3.Operating temperature: -20℃ to 50℃ 4.Operating humidity: <95% 5.Solar panel power: 80-100W × 2 panels 6.Maximum charging current of solar panels: 4.6A (for YDT series 2-4 light models) or 5.7A (for YDT series 5 light model) 7.Maximum power consumption: approximately 11W. The system can operate continuously for more than 144 hours (6 days) under cloudy or rainy conditions (when the solar panels cannot provide power). 8.The signal lights use ultra-bright LED tubes as the light source, offering high brightness and long service life (50,000 hours). 9.Visible distance: greater than 500 meters. 10.The signal lights consist of 4 sets of Φ300 red, yellow, and green three-in-one arrow signal lights. 11.Base cabinet dimensions: 900 × 900 × 500 mm (length × width × height). Total product height is approximately 3 meters. 12.Mobility: push-type with four 6-inch wheels, easily movable by one person. 13.The controller is equipped with automatic control and protection circuits to prevent battery damage caused by direct load short circuits, reverse connection, overcharging, or over-discharging, and also provides reverse polarity protection for the solar panels or battery. 14.Signal controller configuration: signal controller (36 independently controlled outputs, 12 phases, with pre-programmed yellow flashing, shutdown function, one-key factory reset, and optional remote manual release function). 15.The control system features an energy-saving function, automatically entering a dimmed energy-saving mode at night to extend battery operating time. Customization supported as per your demands & drawings. Contact us for details.
